PR565 Infrared Forehead Thermometer Blackbody Radiation Calibration Bath

Short Description:

It can be used by metrology department to check and calibrate standard mercury thermometers, Forehead thermometers, Infrared Surface Thermometers, Ear Thermometers, beckman thermometers and industrial platinum thermal resistance.


Product Detail

Product Tags

Product video

PR565 Infrared Forehead Thermometer Blackbody Radiation Calibration Bath

Overview:

Panran Measurement & Control provides a comprehensive infrared ear thermometer and infrared forehead thermometer calibration solution. The infrared ear thermometer and forehead thermometer calibration system consists of three parts:

Part1. Black-body radiation cavity, high-emissivity black-body radiation cavity is a key component required for the calibration of infrared ear thermometers and forehead thermometers. Its structure and the quality of the internal coating have a significant impact on the calibration results.



Part2. Temperature source–Liquid constant temperature device, used to place and immerse the black body radiation cavity, so that each surface of the radiation cavity has excellent temperature uniformity and temperature fluctuation.



Part3. Temperature standard, used to measure the temperature of the medium in the liquid thermostat.



Part1. Black-body radiation cavity

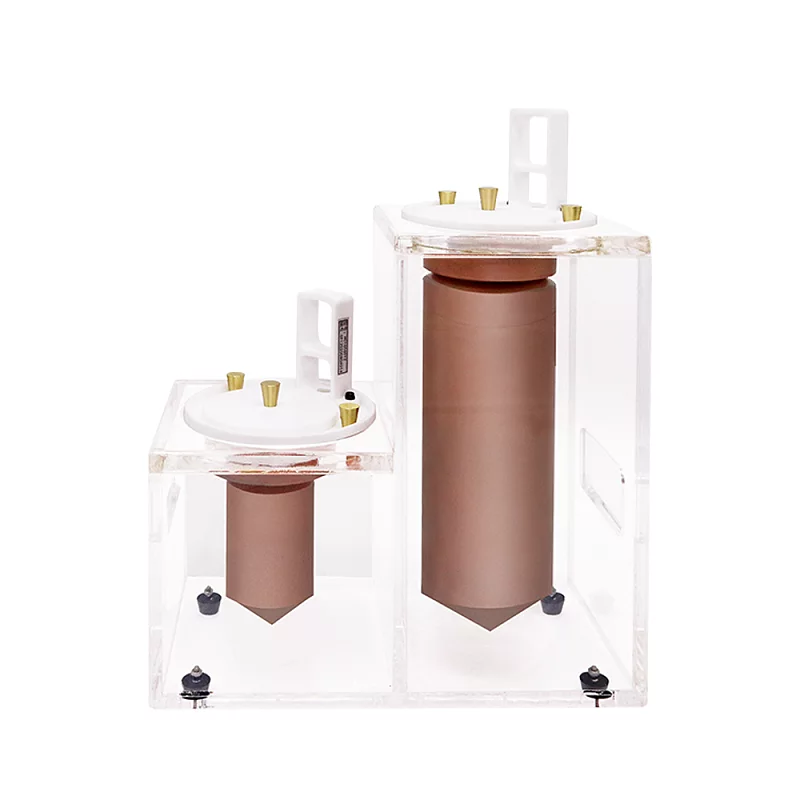

There are two types of black body radiation chambers, which are used to calibrate infrared ear thermometers and infrared forehead thermometers. The black body cavity is gold-plated on the outside and has a high-emissivity coating inside. Requirements to meet the calibration requirements of most infrared ear thermometers and infrared forehead thermometers.



Item HC1656012For infrared ear thermometer calibration HC1686045For infrared forehead thermometer calibration
Emissivity814 μm wavelength 0.999 0.997
Diameter of the hole 10mm 60mm
Max immersion depth 150mm 300mm
Flange diameter 130mm




Part2. Temperature source–the liquid constant temperature device

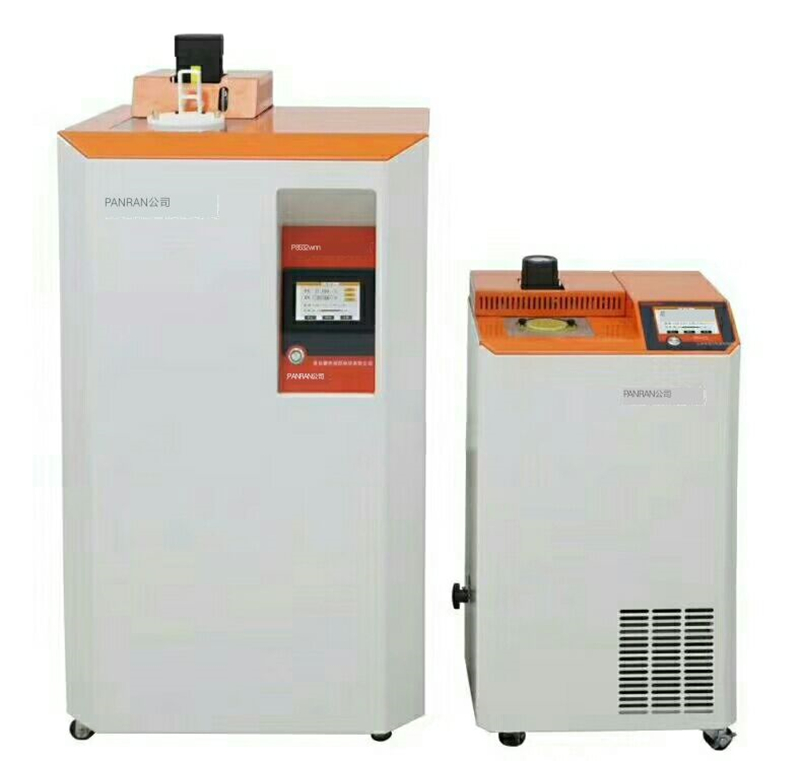

The liquid constant temperature device can choose two types of products, the PR560B infrared thermometer calibration thermostat or the PR532-N10 refrigeration thermostat, both of which have excellent temperature stability and temperature uniformity. Among them, the volume of the thermostat used for the calibration of the PR560B infrared thermometer is only 1/2 of that of an ordinary thermostat, which is convenient to move, transport, or transform it into a vehicle-mounted calibration device.

Items PR560Binfrared thermometer calibration thermostatic bath PR532-N10Cooling bath Remarks
Temperature range 1090℃ -10150℃ Environment temp. 5℃~35
Accuracy 36℃,≤0.07Full range,≤0.1 0.1+0.1%RD
Work medium Distilled water antifreeze
Resolution 0.001
Temperature uniformity 0.01 Full rangeFrom 40mm from the bottom
Temperature stability 0.005/1min 0.01/10min 20 minutes after reaching the set temperature
Power supply 220VAC50Hz2KVA
Dimension 800mm×426mm×500mmH×H×W
Weight 60KG

Note: If the customer already has a constant temperature device that can meet the calibration requirements, it can also be used directly.



Part3. Temperature standard

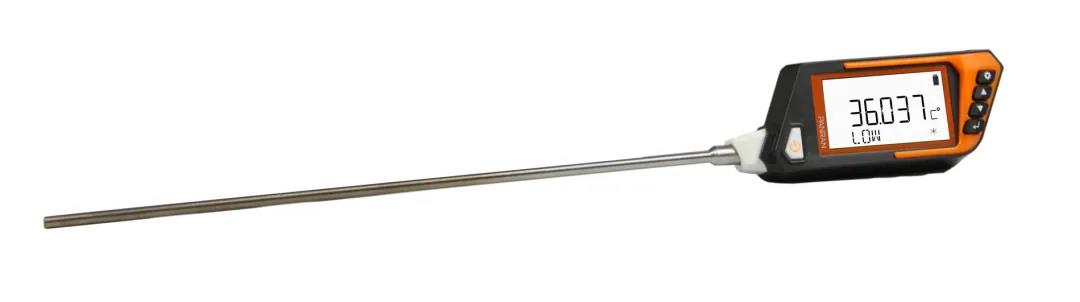

Option 1: In response to the calibration requirements of infrared thermometers, Panran introduced the PR712A standard digital thermometer, with an annual change of better than 0.01 ° C over the full range. Compared with the PR710 and PR711 precision digital thermometers of the same series, it has a better built-in reference resistance, better temperature coefficient and long-term stability. At an ambient temperature of 10 to 35 ° C, its typical temperature coefficient is only 0.5 ppm / ° C.

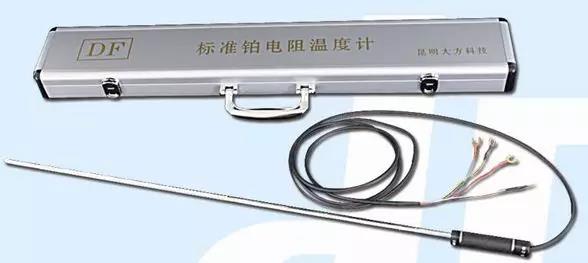

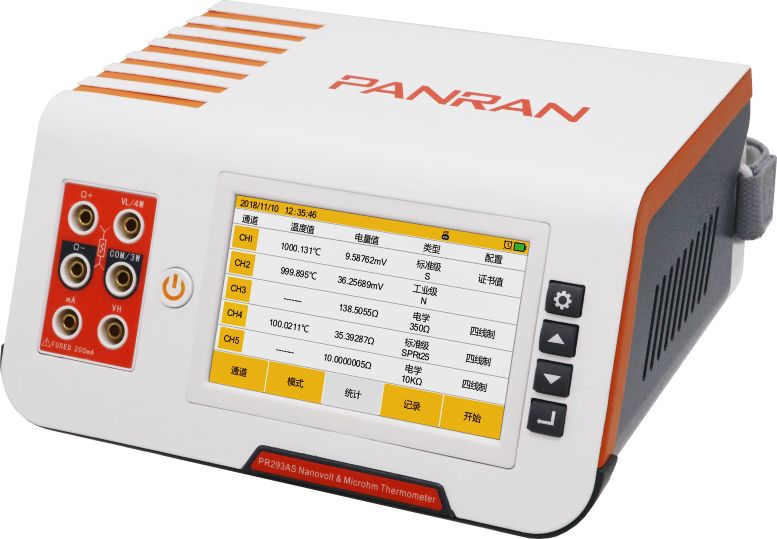

Option 2: Traditional electrical measurement equipment + standard platinum resistance. The electrical measurement equipment in this solution can be configured with PR293 series nanovolt micro-ohm thermometer or PR291 series micro-ohm thermometer. Both series of products can meet the requirements of electrical thermometers related to infrared thermometers.

Items PR712A Standard digital thermometer PR293 seriesNanovolt microohm thermometer PR291 seriesMicroohm thermometer Remarks
Description High-precision integrated thermometertemp. sensor is wound typePT100sensorφ5*400mm Full-featured thermocouple and platinum resistance thermometer High-precision platinum resistance thermometer
Channel No. 1 25 2
Accuracy 0.01 Electricity20ppm(RD)+2.5ppm(FS)Temperature36℃,≤0.008 The PR291 and PR293 thermometers use standard platinum resistance measurement functions.
Resolution 0.001 0.0001
Temperature range -5℃~50 -200℃~660
Communication 2.4G无线 RS485
Battery power duration >1400h 6h PR712Apower is AAAbattery
Dimention(Body) 104×64×30mm 230×220×112mm
Weight 110g 2800g Including battery weight

Application:

The high precision cooling thermostatic bath is suitable for measuring, biochemical, petroleum, meteorology, energy, environmental protection, medicine and other departments and manufacturers of thermometers, temperature controllers, temperature sensors and other manufacturers to test and calibrate physical parameters. It can also provide constant temperature source for other experimental research work. Example 1. Second-class standard mercury thermometer, Forehead thermometers, Infrared Surface Thermometers, Ear Thermometers, beckman thermometer, industrial platinum thermal resistance, standard copper-constantan thermocouple verification, etc.
